The No Brainer, Smart LED Conversion (SLC) Kit For Fluorescent Light

Fluorescent lighting (FL) is inefficient, outdated and toxic to the environment (every tube contains mercury) compared to new generation of LED lights. Fluorescent lights are also costly to operate due to their shorter life span and increasingly higher electricity rates. Most FL are not readily dimmable so they are normally turned on to their maximum power without any control, wasting energy where it needn’t be. Smart LED Conversion kit lets you eliminate the linear fluorescent tubes and convert your FL fixtures into auto-dimming, modern Smart LED lights!

1. Real-life SLC Projects & Videos

(Back To Top)
1. Smart LED In An Emergency Corridor
Watch project videos and energy savings details


2. Installation of Smart LED Conversion Kit

3.  Smart LED In An Underground Carpark
Click the above picture for details.

2. Be Smart – Convert & save up to 95% Energy

(Back To Top)
Download PDF Brochures

SLC is a new low-cost solution that instantly convert your fluorescent lighting fixture into efficient, eco-friendly Smart LED lighting. For a fraction of the price of a new panel and lighting controller, you can immediately and completely transform your old fluorescent fixture into *Smart LED light with built-in vacancy and daylight harvesting control. Enjoy an immediate saving of up to 95% in your next electricity bill!

Size Does Not Matter!   Converting fluorescent to smart LED using ALEC SLC is almost as quick and simple as a routine fluorescent re-lamping. Since there is no changes to the electrical wiring, you do not have to deal with costly project planning, specifying, and commissioning normally associated with the installation of a smart lighting control system. The cost per unit for converting a single fixture would not be significantly different from converting 1000 fixtures! As such, any commercial or residential building space, regardless of size, can immediately leverage on this new technology to save a large amount of energy, with minimum work and very fast payback.

3. The World’s Quickest Smart Lighting Project

(Back To Top)

Looking to save the maximum amount of lighting energy for existing buildings as quickly as possible, with no disruption to your business and at the lowest cost? Look no further! For less time than it takes to draw up an engineering drawing for the lighting control plan for most other lighting control projects, you could have already converted all your fluorescent lights to smart LED lights and start saving lots of money (and saving tons of CO2) immediately. ALEC SLC is a true no-brainer choice for the following reasons:

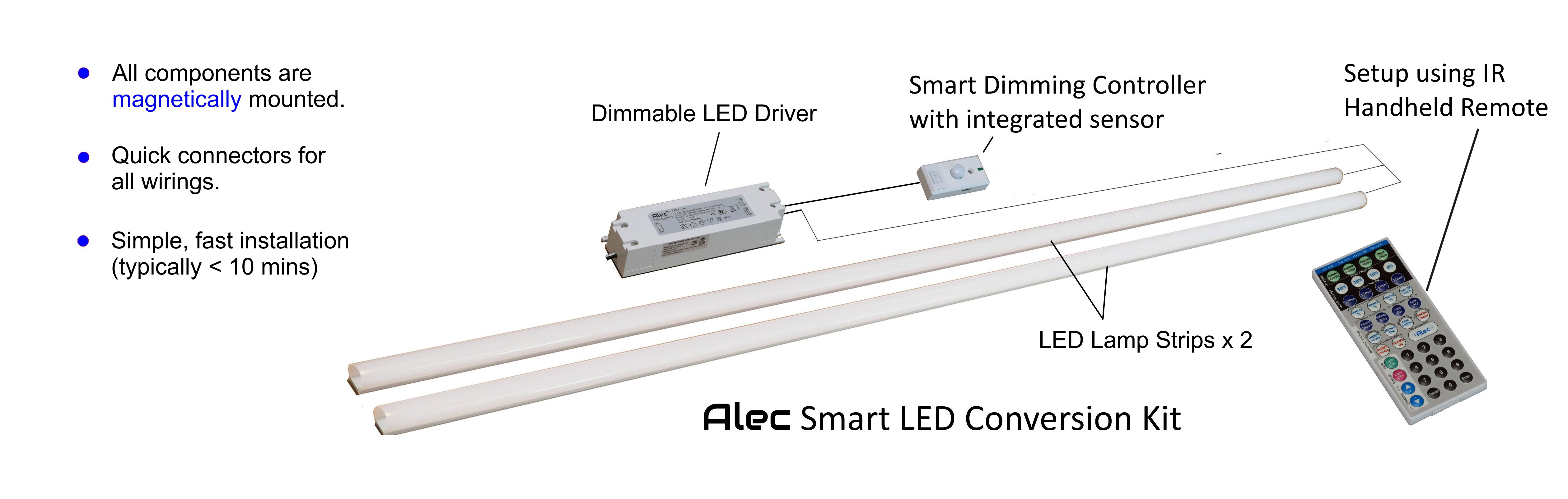

    • Quick conversion: Typically takes less than 10 minutes per fixture. The LED driver, LED lighting strips, and lighting controller all have magnetic backing, which allow them to be magnetically snapped onto the fixture body without requiring any tools.
    • No project overheads: Conversion is almost as quick and simple as a routine re-lamping effort. Since no changes to the electrical wirings, the facility managers do not need to deal with costly project planning, specifying, and commissioning normally associated with smart lighting installation.
    • No disruption to current operation: Thanks to the quick conversion process.
    • No disposal cost of existing fixture body: Minimizes waste, hence more environmentally friendly.
    • No above-ceiling re-wiring required: The electrician simply switches the AC wiring from the ballast to the LED driver within the troffer body. No need for Hazardous Building Materials Assessment (a legal requirement that protects workers against harmful materials such as asbestos, lead, mercury, etc).
    • Integrated Control: The integrated lighting controller in the ALEC-SLC provides the occupancy, vacancy and daylight harvesting control function to every converted luminaire to minimize energy wastage. The lighting controller is designed to be able to perform seamless dimming and brightening of the light with programmable fade ON and fade OFF time.

4. Smart & Easy – Configure In 10 seconds!

(Back To Top)
Pre-Configuraton

The fully programmable LC1 Smart Lighting Controller included with every SLC is incredibly simple to setup. Just connect a PC or a smart phone to the LC1 using a USB cable, and select one of the pre-defined profiles. Then click the “Write Settings” button on the screen, and the controller is setup and ready to deploy! You can further fine-tune every configurable parameter for special applications:

Note: LC1 can be powered by the USB cable directly for programming purpose and hence can be configured quickly without being installed first!

Field Commissioning

Once deployed in the field, the electrician can adjust the 4 most common parameters using nothing more than a screw driver: Vacancy time-out, User-set working brightness, Vacancy dim-to brightness, and enable or disable Daylight harvesting. Need more fine tuning? Just connect a smartphone to the controller anytime. Nothing but extraordinary flexibility in this incredible, low cost Smart LED Conversion kit.



5. SLC Installation Guide

(Back To Top)

A. Watch SLC Installation Video
B. Visit the following link to read :


Smart LED Conversion Kit Installation Guide

6. Conversion Kit Models:       How To Buy?

(Back To Top)

SmartLighting offers several models of SLC kits with different color temperatures to suit different applications. Almost any type of 2′ or 4′ fluorescent fixture can be converted to Smart LED light. A converted 2×4 fluorescent fixture with frosted cover is shown below.

i)  AC 100V-277V Conversion Kits For fixtures using 4′ (120cm) fluorescent tubes.  (Click picture to enlarge)

Model No Input Voltage Output
Power
Lumens1
(Nominal)
Color
Temperature
SLC1-24F40K AC 100-277V 40W 5600 4000K (Daylight)
SLC1-24F50K AC 100-277V 40W 5700 5000K (Cool Daylight)

1Total rated output lumens before fixture loss.

Examples of 4′ linear fixtures or 2’x 4′ FL troffers that can be converted by SLC1-24FxxK. These include fixtures tat are currently using from 1 to 4 tubes of T8/T12 FL lamps, with or without diffuser cover. The SLC1-24FxxK is as bright as 4 tubes of 32W T8 or 40W T12 FL lamps (low to normal ballast factor). The desired working brightness can be adjusted anytime using a screw driver during or after installation.

ii) AC 100V-277V Conversion Kits For fixtures using 2′ (60cm) fluorescent tubes. (Click picture to enlarge)

Model No Input Voltage Output
Power
Lumens1
(Nominal)
Color
Temperature
SLC1-22F40K AC 100-277V 20W 2800 4000K (Daylight)
SLC1-22F50K AC 100-277V 20W 2800 5000K (Cool Daylight)

1Total rated output lumens before fixture loss.

Examples of 2′ linear or 2’x2′ FL fixtures that can be converted by SLC1-22FxxK. These include fixtures that are currently using from 1 to 4 tubes of T8/T12 fluorescent lamps, or 2’x2′ fixtures that currently use 1 to 2 tubes of U-shape T8/T12 lamps. The desired working brightness can be adjusted using a screw driver anytime during or after installation.

iii) AC 347V Conversion Kits – Please call to check for the lead time.

Model No Input Voltage Output
Power
Lumens1
(Nominal)
Color
Temperature
  For 4′ FL Fixture
SLC1-24F40K-347V AC 120V-347V 40W 5600 4000K (Daylight)
SLC1-24F50K-347V AC 120V-347V 40W 5700 5000K (Cool Daylight)
For 2′ FL Fixture
SLC1-22F40K-347V AC 120V-347V 20W 2800 4000K (Daylight)
SLC1-22F50K-347V AC 120V-347V 20W 2800 5000K (Cool Daylight)

1Total lumen output before fixture loss.

7. Smart LED For Open Office

(Back To Top)
It should be obvious that you can really save a staggering amount of energy by auto-dimming unused spaces, especially in areas that require 24/7 lighting, such as carparks, stairwells and any pathways used for emergency exit.

However, the largest amount of wasted lighting energy in commercial space is actually in lighting up the open-plan offices (aka “open offices”) which are common throughout the world. Unlike enclosed spaces where simple on/off occupancy-based lighting control may be a code-compliant, albeit non-ideal compromise, open offices present a big challenge to lighting control because the space is shared. However, with luminaire-level lighting control attainable only with ALEC SLC, you will now be able to instantly convert the fluorescent lights (commonly used in open office lighting) to Smart LED lights and save more than 80% energy, with no disruption to your existing operation. For more details, please click the white paper link next to find out why and how to save vast amounts of otherwise wasted energy in open-plan offices.

8. Conversion versus New LED Panel/Light?

(Back To Top)
Another option for upgrading your fluorescent fixtures is to replace them with brand new LED panels or fixtures. Sure, these new lights may look cool. But, do you know that in many jurisdictions, upgrading > 10% of your lighting load would mandate installation of advanced, often costly lighting control to comply with new building energy codes such as ASHRARE 90.1, NECB or Title 24? With its built-in smart controller and sensors, the Smart LED Conversion Kit offers many advantages over the new LED panel option for upgrading an existing fluorescent fixture:

Ease of Installation
=> Lower Installation Cost.
    • Takes only 10 minutes per fixture to convert using SLC.
    • No need to remove existing fixture to install new panel.
    • No need for above-ceiling re-wiring of AC mains to accommodate lighting control system.
Lower Hardware Cost Cost only a fraction of a new dimmable LED panel light (before adding any control).
Energy Code Compliant SLC’s built-in dimming controller is fully configurable to meet any of the building energy codes (ASHRAE 90.1 NECB, Title 24 etc). No need to spend hundreds of dollars to add control hardware for compliance.
Environmentally Friendly No need to dispose off perfectly good fixture body. Save on disposal cost.
Long Lifespan Similar lifespan as standard LED panel – up to 50,000 hours when operating at full power, and carry a 5-year manufacturer’s warranty. However, thanks to the vacancy and daylight dimming by the smart controller, the LED lamps’ lifespan is expected to extend well beyond the rated full-power lifespan.
Ease of Maintenance When an LED panel fails or reaches its end-of-life, the whole panel must be replaced by a qualified electrician. With SLC, every individual component is quickly replaceable using its quick connectors. E.g. Each individual LED lamp on the SLC can be quickly detached from the low voltage DC power, and a new lamp can be replaced within < 1 minute!
